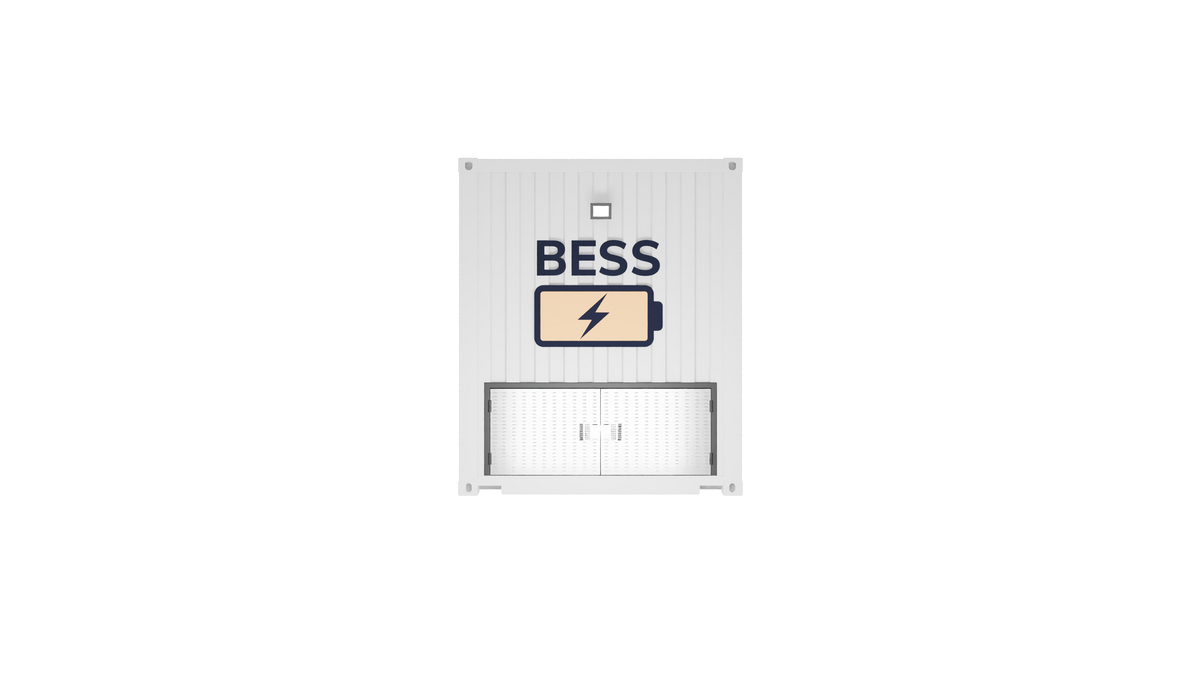

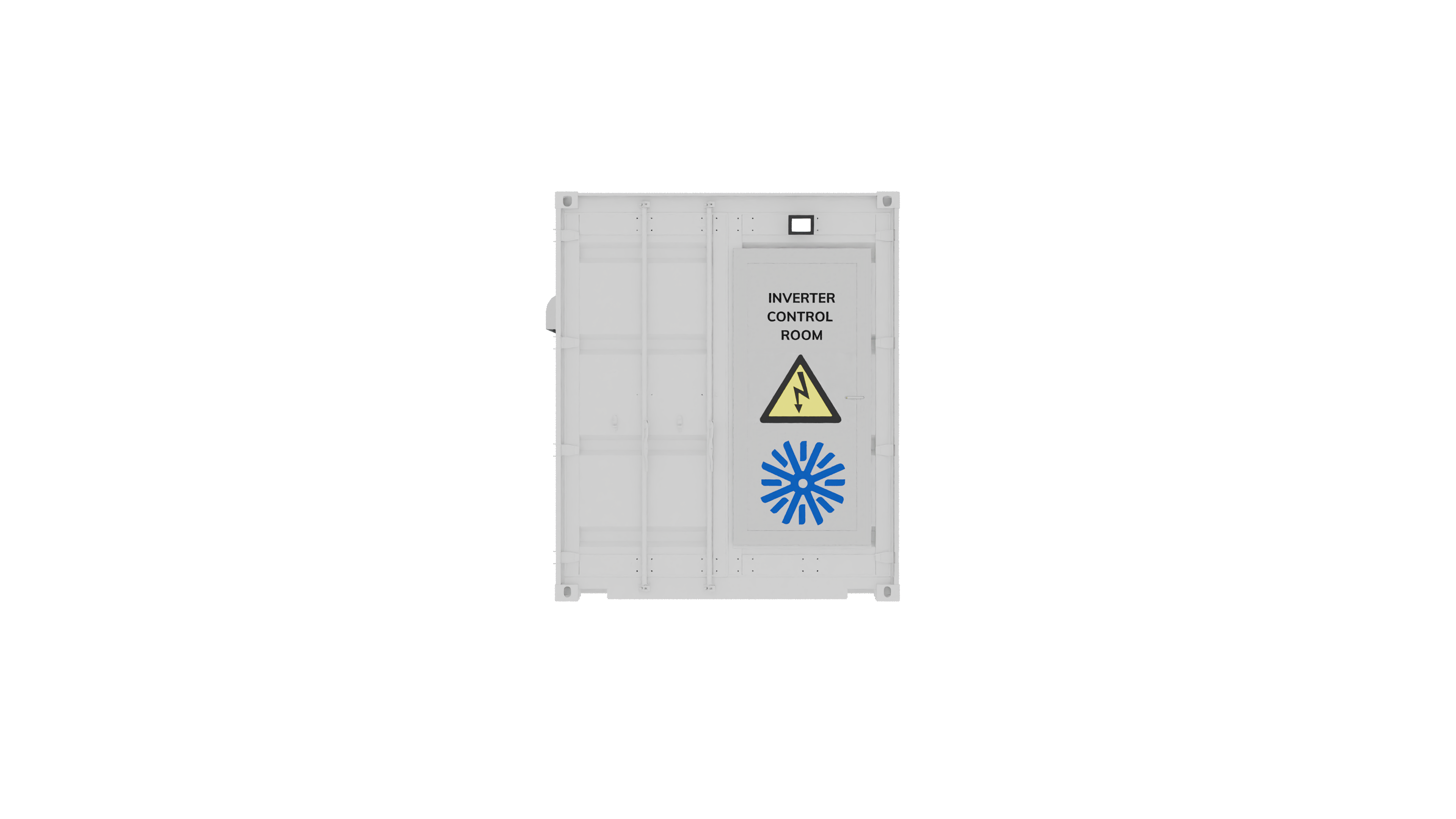

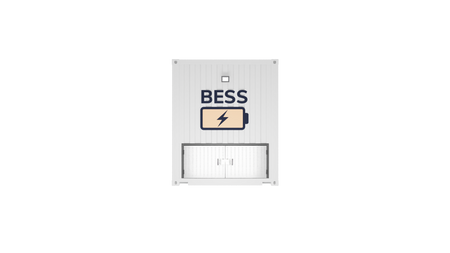

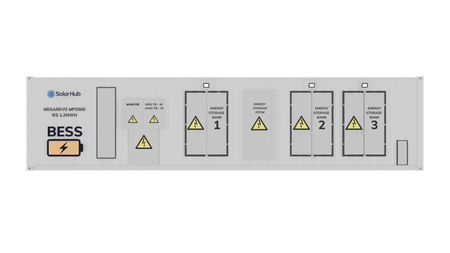

BESS - MPS500 & 1mWh

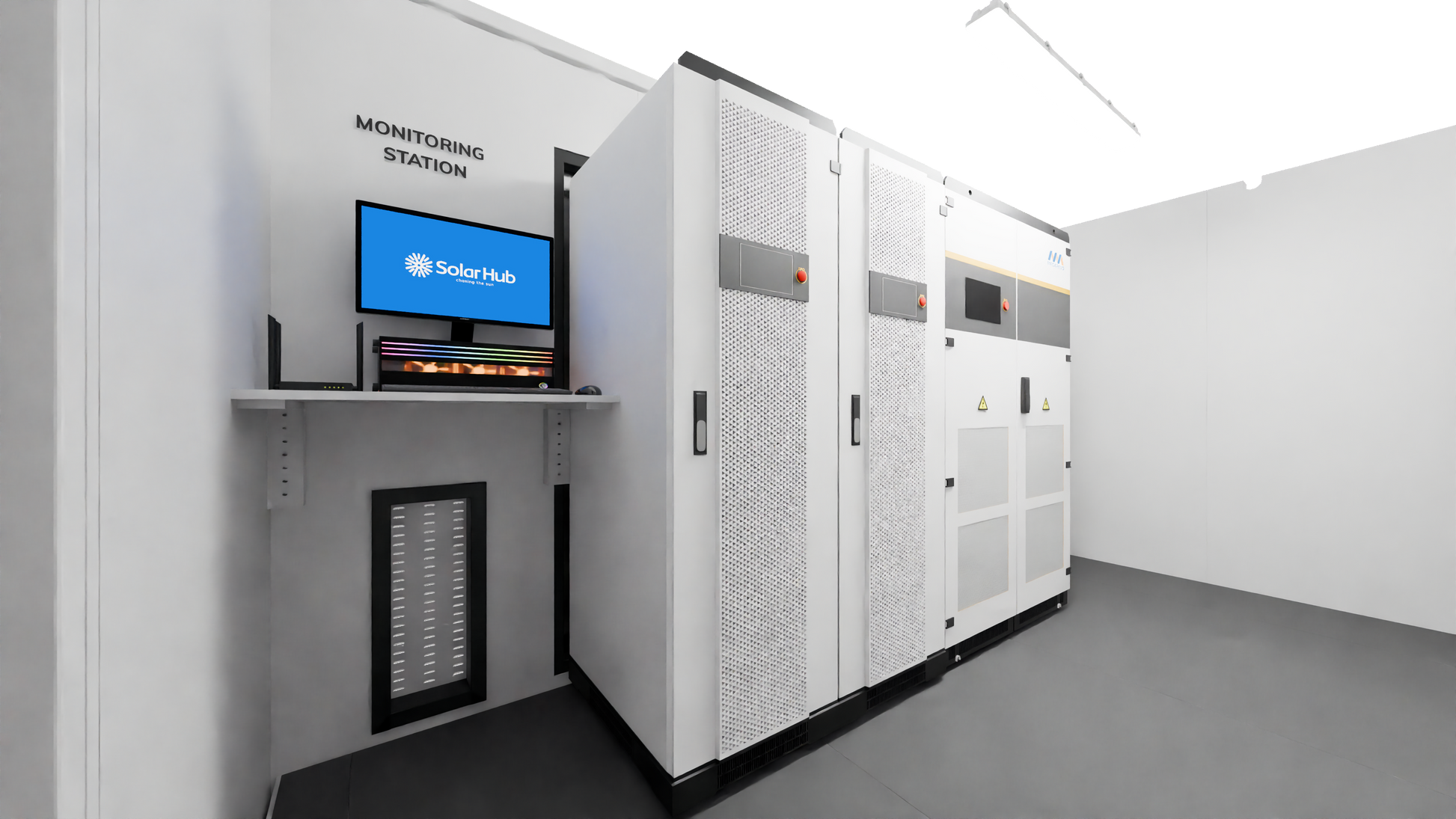

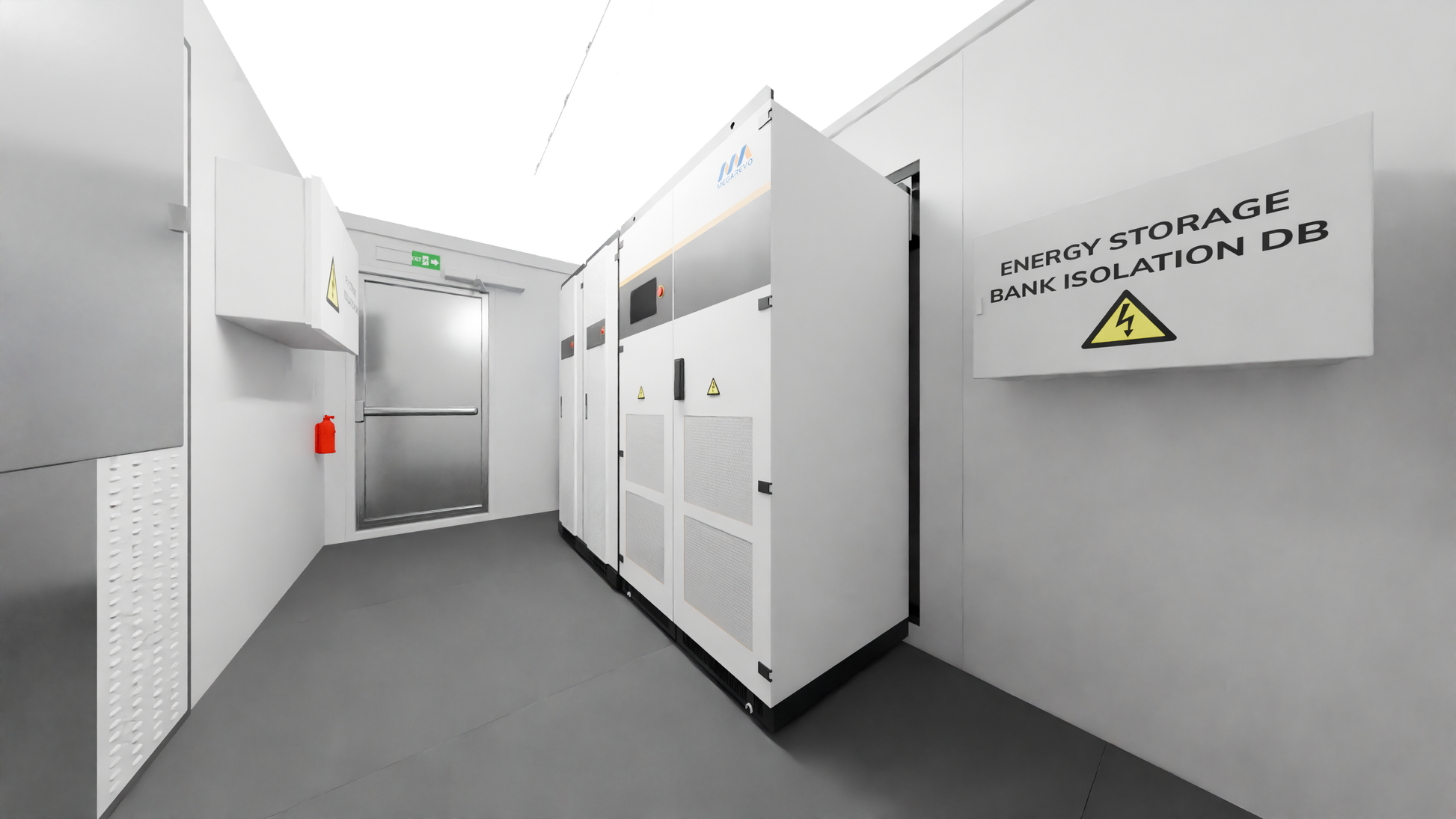

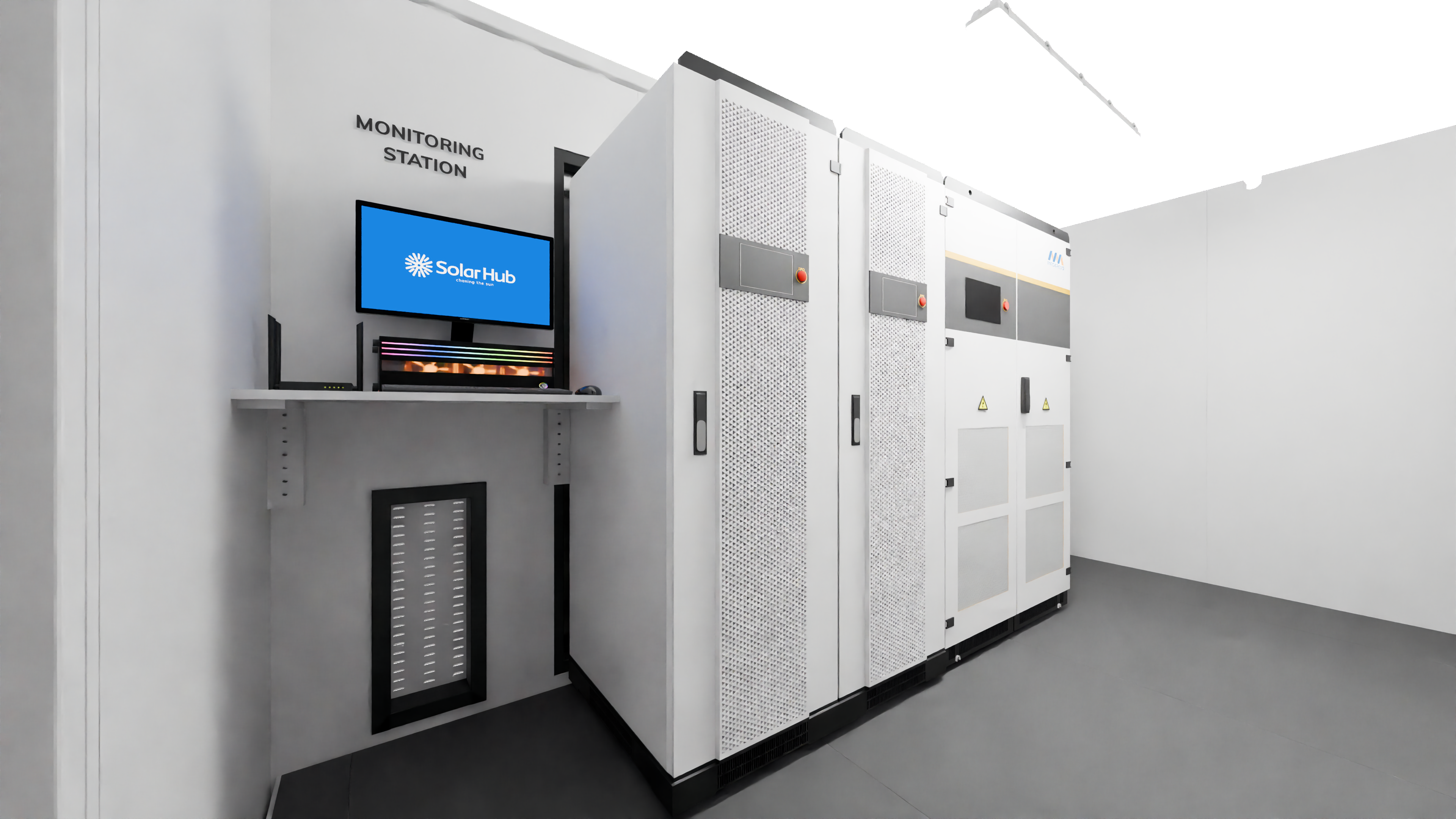

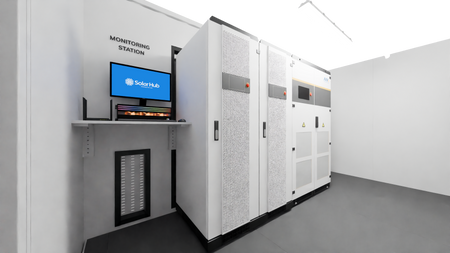

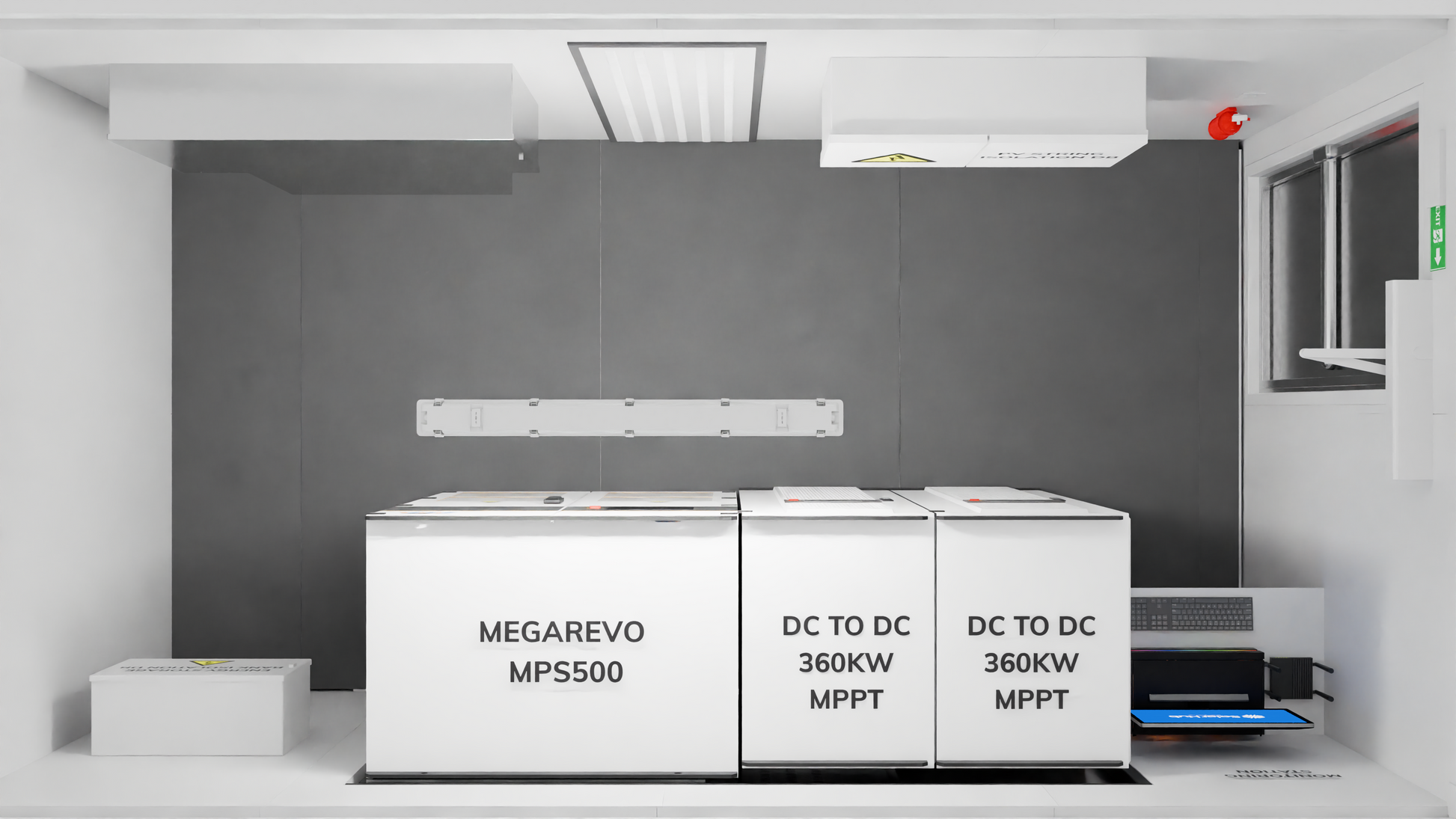

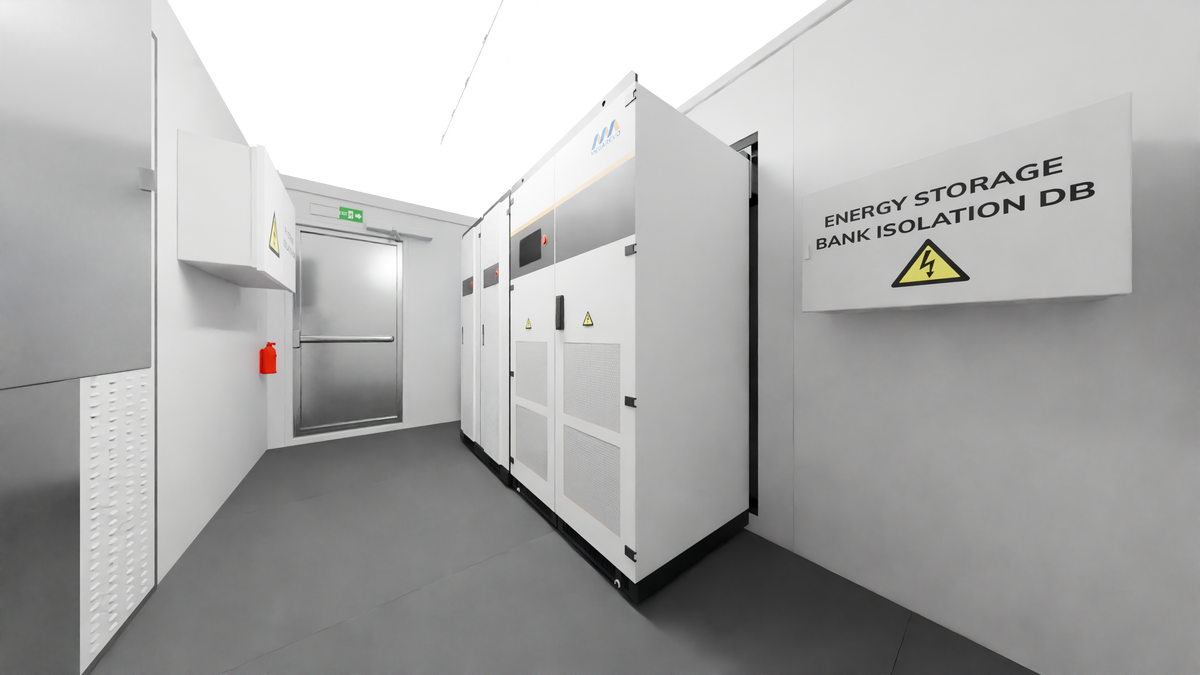

MPS0500 (500kW) Hybrid Inverter:

Empower your off-grid energy infrastructure with the MPS0500 hybrid inverter from Megarevo. With a staggering max output power of 550kVA and a rated power of 500kW, this high-capacity inverter sets a new standard for performance and reliability. Engineered for off-grid mines and villages, the MPS0500 features advanced control power AC and DC redundant power supply, ensuring uninterrupted power delivery in any scenario. Plus, with easy expansion capability and flexible PV and battery configurations, this inverter is the ultimate solution for scaling up your off-grid energy system.

Technical Data:

  • Max Output Power: 550kVA
  • Rated Power: 500kW
  • Rated Voltage: 400V
  • Rated Current: 722A
  • Overload Capacity: 110% long-term, 120% 1min
  • Max PV Input Voltage: 1000V
  • Max PV Power: 600/660/720kW
  • MPPT Module Quantity: 10/11/12
  • Battery Voltage Range: 420~850V
  • Max Charging Power: 360kW

          Datasheet

          Installation Manual

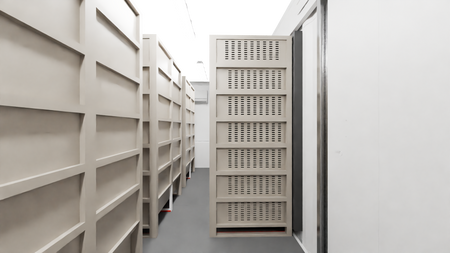

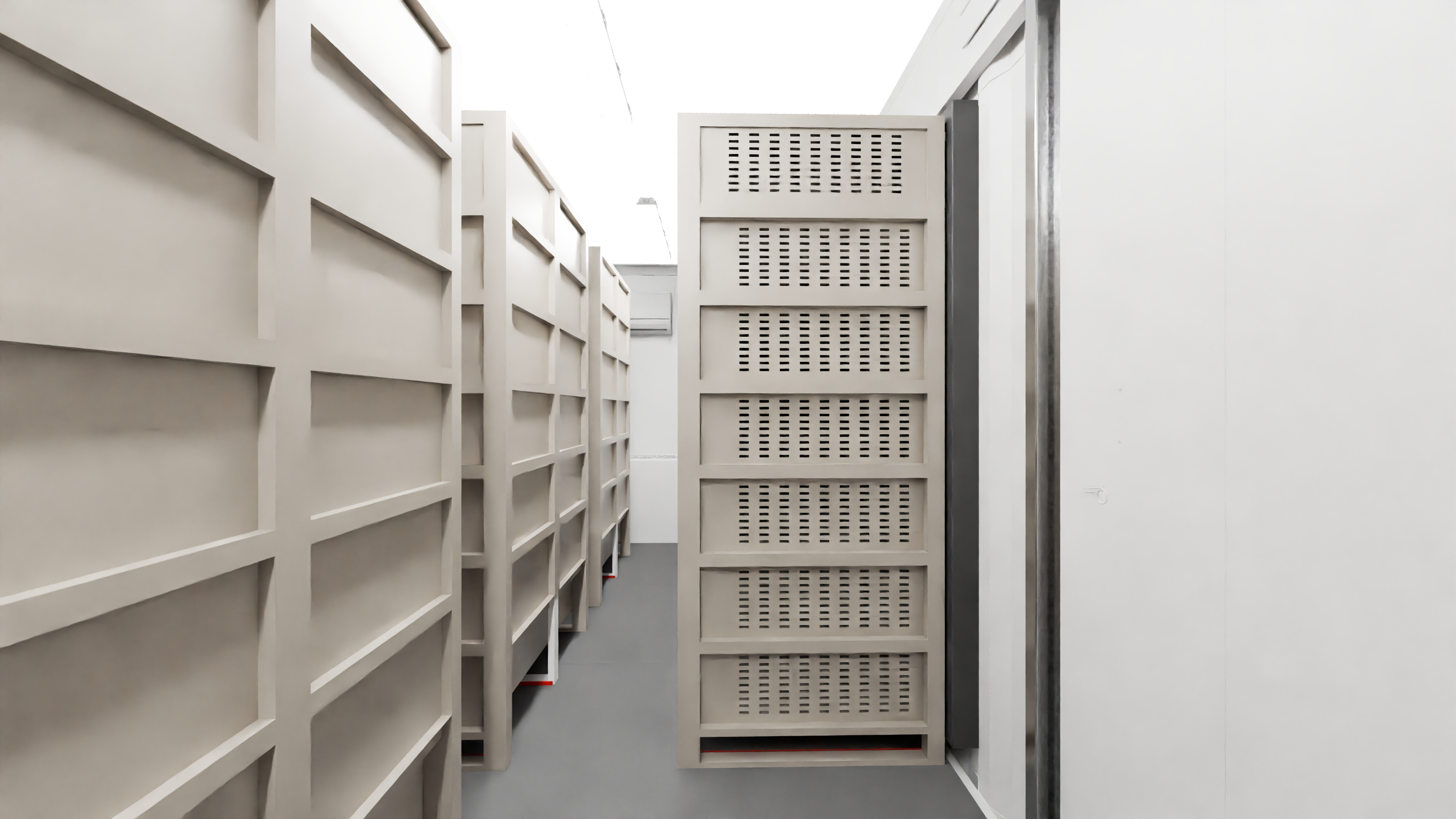

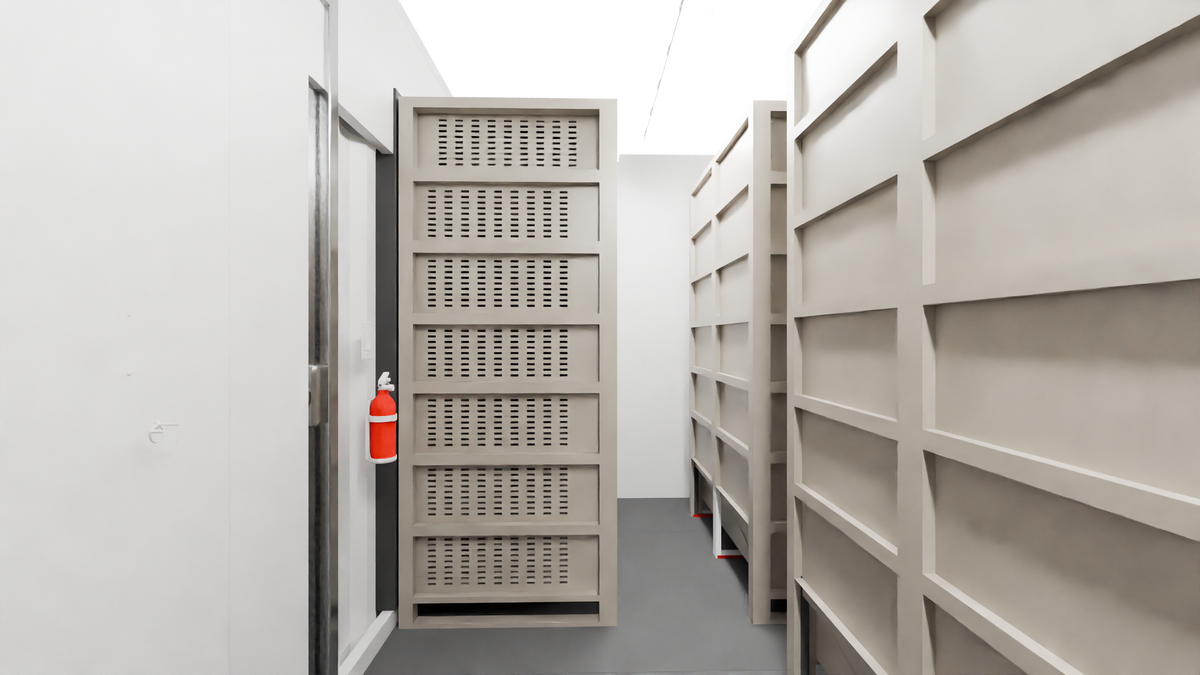

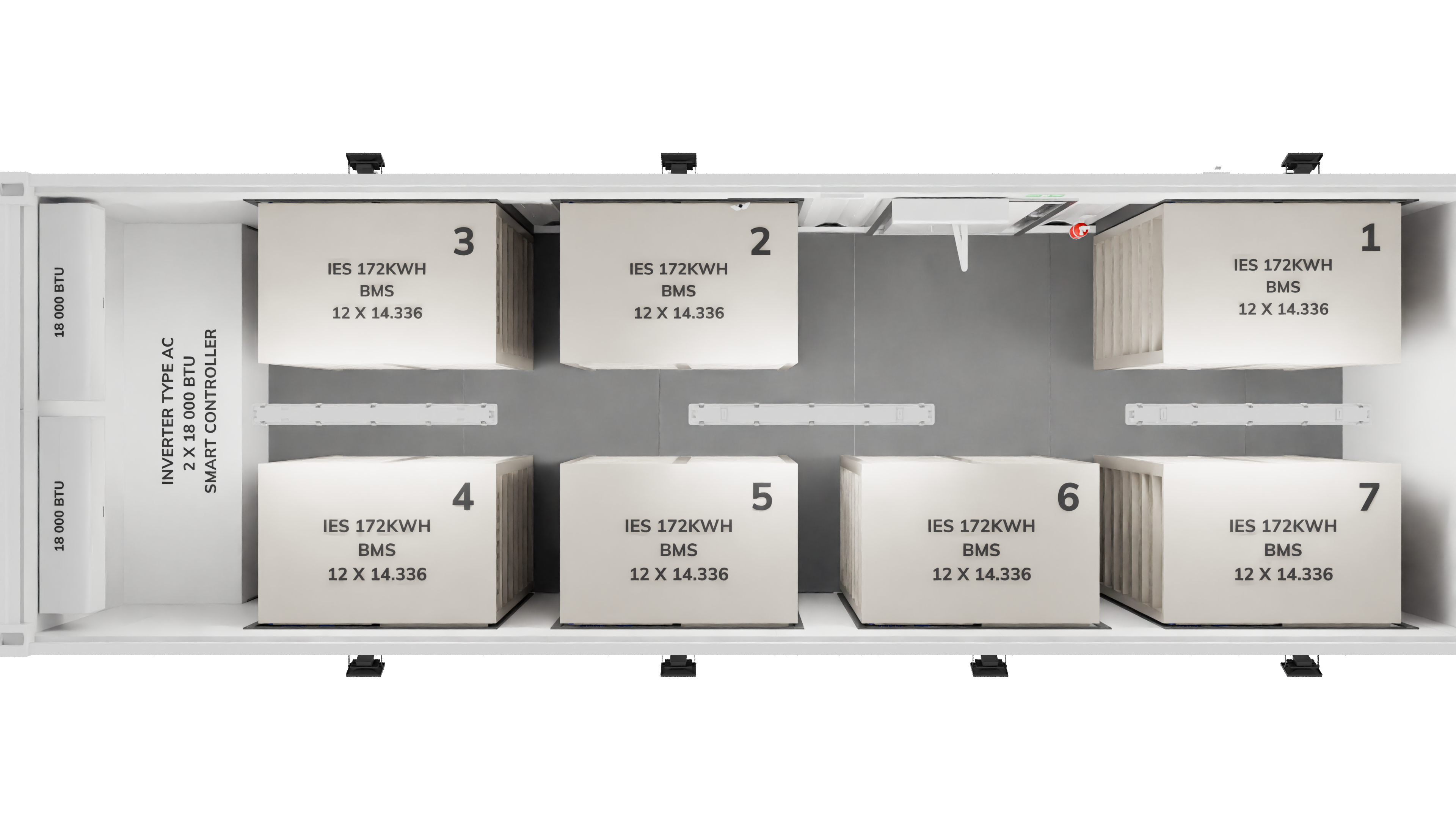

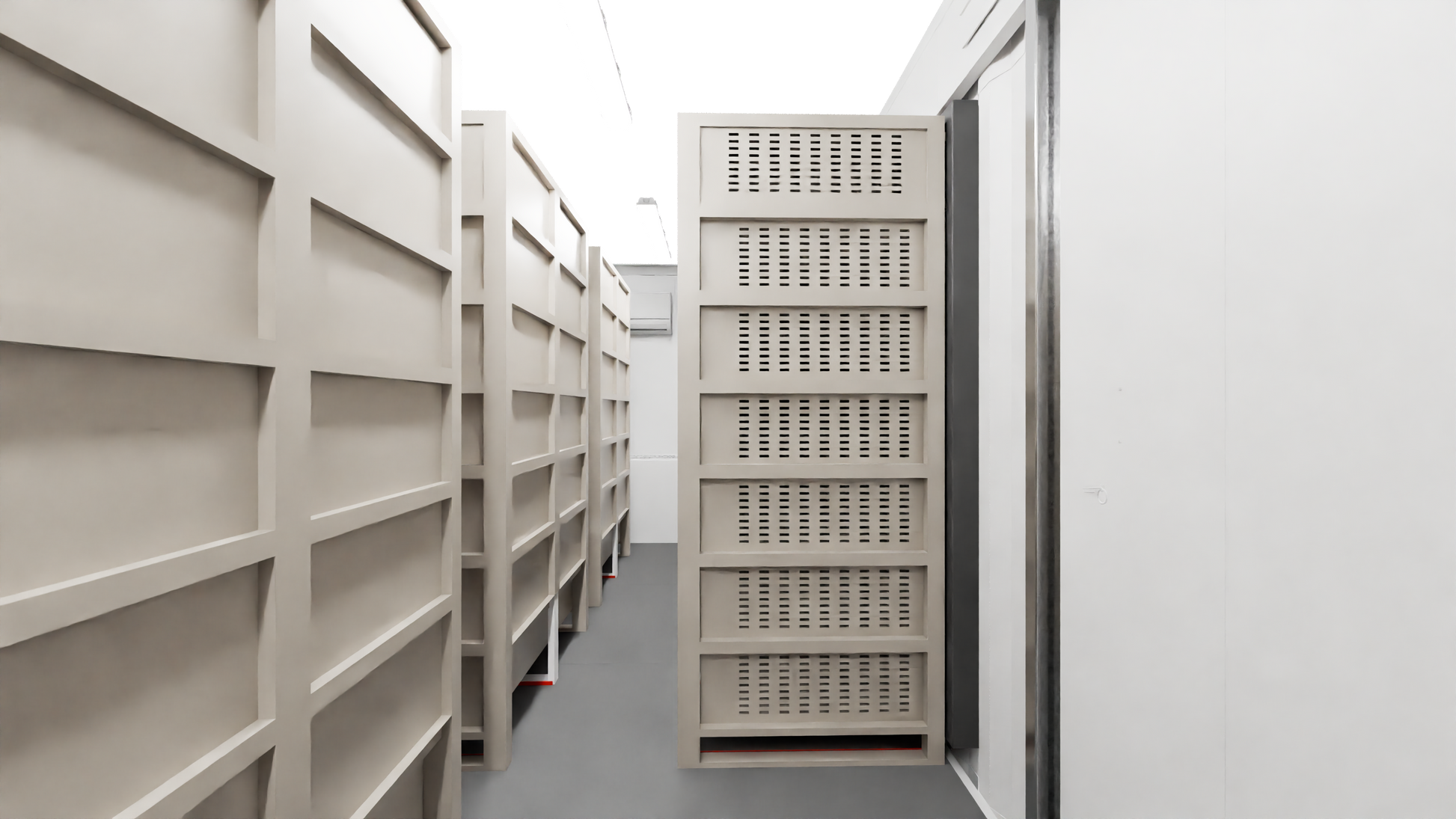

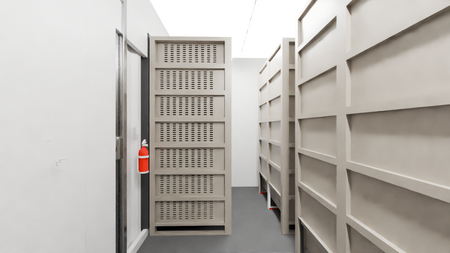

          Lithium Ion Battery HV - IES 200kWh

          Description:

          IES-BATT-200R

          • 14 x 14.33kWh HV battery modules
          • 1 x BCU
          • 4 x mounting brackets [for 2 x blank panels]
          • Cables and accessory kit

            Performance

            • Battery module (Wh/V) - 14.336 kWh, 51.2 V, 110 kg (242.5 lbs)
            • Number of modules  - 14
            • Cell technology - LFP (LiFePO4)
            • Battery usable energy [1] - 200.704 kWh
            • Nominal voltage - 716.8 V
            • Operating voltage - 786.24 V
            • Nominal output current - 140 A / 280 A

            Communication

            • Display - SOC status indicator, LED indicator, LCD display
            • Communication - Ethernet / CAN / RS485

            General Specification

            • Dimension (W*D*H) - 1721x840x1776 mm ; 67.8x33.1x69.9 inch
            • Weight - 1870kg (4122lbs)
            • Operating temperature [2] - -20 to 60 °C (-4 to 140 °F)
            • Environmental humidity - ≤ 95%RH (No condensation)
            • Protection rating - IP 20
            • Cycle life [3] - 8000 Cycles or 10 years @ 80% DOD / 25℃ / 0.5C，70% EOL
            • Scalability - Yes
            • Application - ON Grid / ON Grid + Backup / OFF grid
            • Compatible PCS - Refer to compatible PCS list

            Standard Compliance

            Certificates:

            • Cell: UN38.3 / IEC62619 / UL 1642 / JET
            • Pack: UN38.3 / IEC62619 / IEC61000
