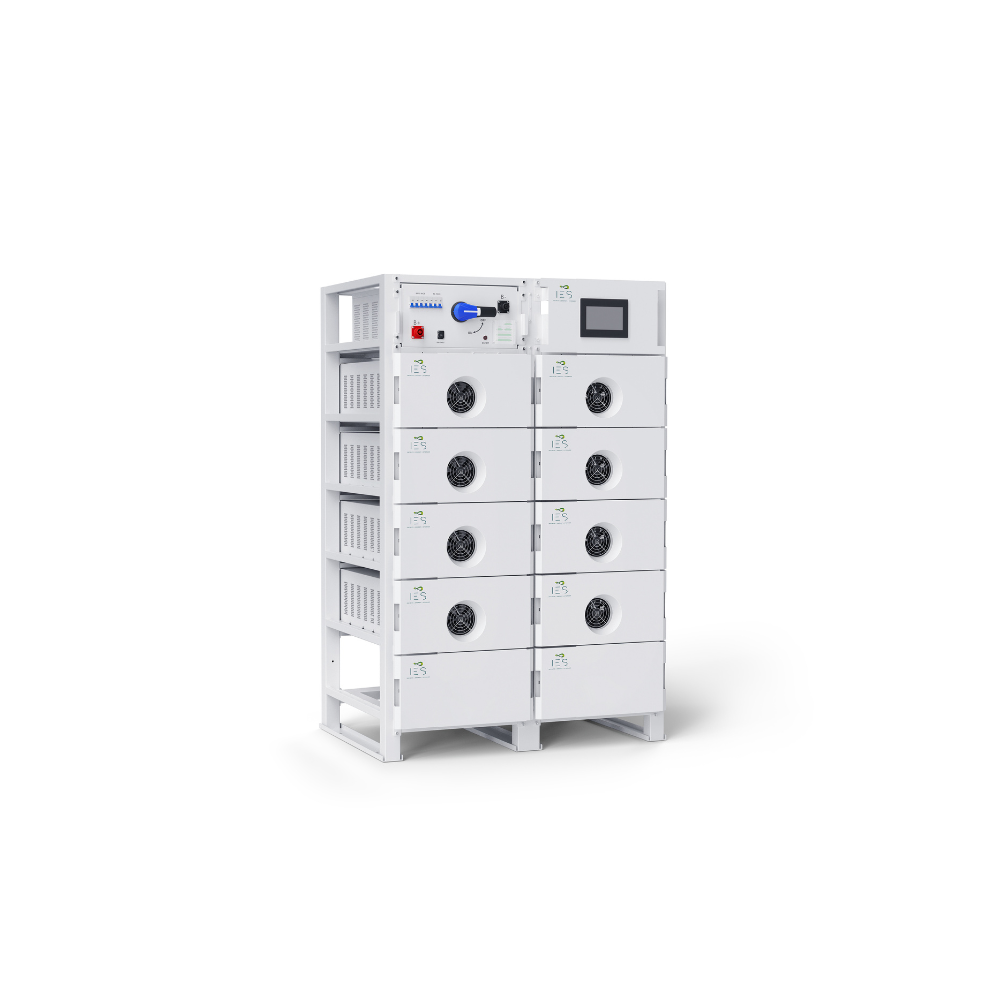

Lithium Ion Battery HV - IES 114kWh High Voltage

Lithium Ion Battery HV - IES 114kWh

Description:

IES-BATT-114R

  • 8 x 14.33kWh HV battery modules
  • 1 x BCU
  • 4 x mounting brackets [for 2 x blank panels]
  • Cables and accessory kit

Performance

  • Battery module (Wh/V) - 14.336 kWh, 51.2 V, 110 kg (242.5 lbs)
  • Number of modules  - 8
  • Cell technology - LFP (LiFePO4)
  • Battery usable energy [1] - 114.688 kWh
  • Nominal voltage - 409.6 V
  • Operating voltage - 364.8-449.28 V
  • Nominal output current - 140 A / 280 A

Communication

  • Display - SOC status indicator, LED indicator, LCD display
  • Communication - Ethernet / CAN / RS485

General Specification

  • Dimension (W*D*H) - 1164x840x1776 mm ; 45.8x33.1x69.9 inch
  • Weight - 1130kg (2491lbs)
  • Operating temperature [2] - -20 to 60 °C (-4 to 140 °F)
  • Environmental humidity - ≤ 95%RH (No condensation)
  • Protection rating - IP 20
  • Cycle life [3] - 8000 Cycles @ 80% DOD / 25℃ / 0.5C,70% EOL
  • Scalability - Yes
  • Application - ON Grid / ON Grid + Backup / OFF grid
  • Compatible PCS - Refer to compatible PCS list

Standard Compliance

Certificates:

  • Cell: UN38.3 / IEC62619 / UL 1642 / JET
  • Pack: UN38.3 / IEC62619 / IEC61000
  • System: UL 9540 (More available upon request)
