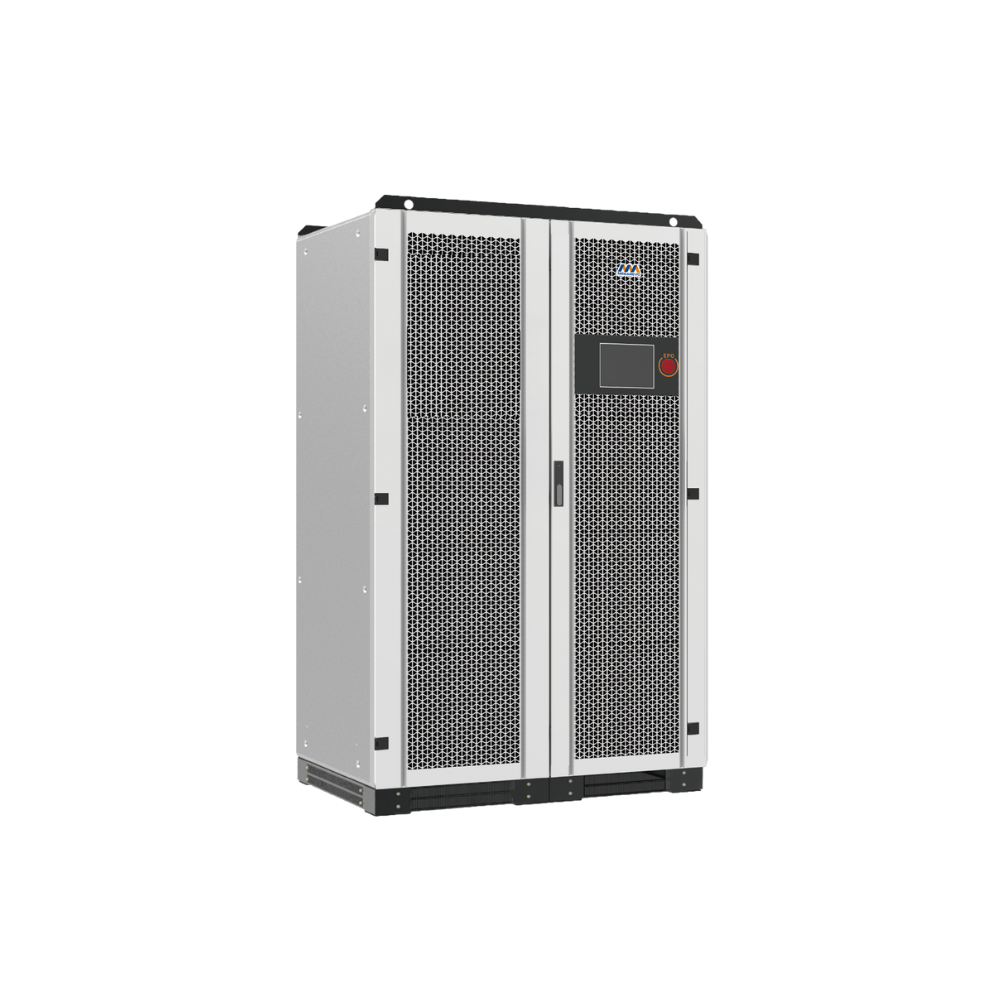

PCS Inverter - MegaRevo MPS150

MPS0150 (150kW) Hybrid Inverter:

Revolutionize your off-grid energy solutions with the MPS0150 hybrid inverter by Megarevo. With a max output power of 165kVA and a rated power of 150kW, this high-power inverter offers unmatched performance and reliability. Designed for off-grid mines and villages, the MPS0150 features advanced control power AC and DC redundant power supply, along with support for single-phase and three-phase load power supply. Plus, with easy expansion capability and flexible PV and battery configurations, this inverter is the ultimate solution for scaling up your off-grid energy system.

Technical Data:

  • Max Output Power: 165kVA
  • Rated Power: 150kW
  • Rated Voltage: 400V
  • Rated Current: 216A
  • Overload Capacity: 110% long-term, 120% 1min
  • Max PV Input Voltage: 1000V
  • Max PV Power: 120/180/240kW
  • MPPT Module Quantity: 2/3/4
  • Battery Voltage Range: 420~850V
  • Max Charging Power: 360kW
