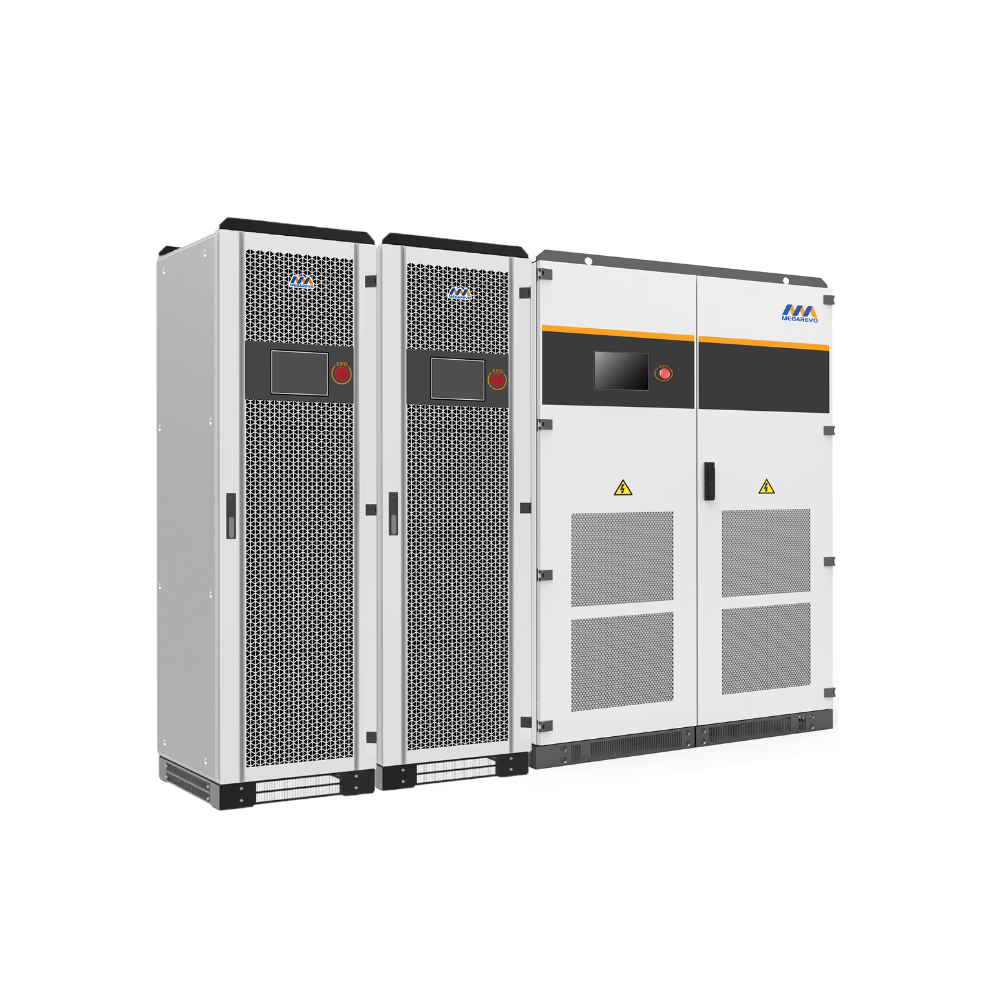

PCS Inverter - MegaRevo MPS500

MPS0500 (500kW) Hybrid Inverter:

Empower your off-grid energy infrastructure with the MPS0500 hybrid inverter from Megarevo. With a staggering max output power of 550kVA and a rated power of 500kW, this high-capacity inverter sets a new standard for performance and reliability. Engineered for off-grid mines and villages, the MPS0500 features advanced control power AC and DC redundant power supply, ensuring uninterrupted power delivery in any scenario. Plus, with easy expansion capability and flexible PV and battery configurations, this inverter is the ultimate solution for scaling up your off-grid energy system.

Technical Data:

  • Max Output Power: 550kVA
  • Rated Power: 500kW
  • Rated Voltage: 400V
  • Rated Current: 722A
  • Overload Capacity: 110% long-term, 120% 1min
  • Max PV Input Voltage: 1000V
  • Max PV Power: 600/660/720kW
  • MPPT Module Quantity: 10/11/12
  • Battery Voltage Range: 420~850V
  • Max Charging Power: 360kW
